Powered Trike Systems
Evolution of Excellence
Trike Platform
A decade of refinement perfected
Drawing from ten years of field experience with our original platform, we've engineered the next-generation ®2 for both single-pilot and tandem configurations.
Advanced geometry optimization balances center of gravity, wing attachment height, and tricycle dynamics for exceptional handling characteristics in all flight phases.
Power Options
The TIGER engine delivers proven reliability with exceptional power-to-weight ratio and minimal fuel consumption.
Upgrade to the MOSTER 185 PLUS featuring dual-start capability (manual and electric) with integrated clutch system, accommodating a broader pilot weight range.
The MINI3 EVO powers the single-pilot variant with a three-blade 1.3m propeller, maximizing thrust while minimizing acoustic signature.
Enhanced Powerplant
Significant engineering advances elevate reliability and performance. The MINI3 EVO tandem configuration features: professional-grade Mitsuba starter, optimized 3.25:1 reduction ratio, reinforced PK-type belt for sustained power delivery, and redesigned airbox for consistent engine performance and acoustic damping, complementing updated crankshaft and crankcase components.
Equipped with a 1.6m three-blade propeller, this tandem system delivers exceptional thrust combined with whisper-quiet operation.
Built for Endurance
Aerospace-grade construction utilizing stainless steel, titanium, and carbon fiber components. Reinforced structural design engineered from inception for tandem operations while maintaining optimal weight efficiency.
Performance & Comfort
Enhanced chassis efficiency throughout inflation and ground roll phases, delivering superior ergonomic control for both single-pilot and tandem flight operations.
Pilot and passenger positioning meticulously refined for optimal geometry and exceptional seating comfort during extended flights.
Enhance Your Flight
Configuration Options
Aluminum Wheels
Enhanced ground handling
Composite Wheels
Weight optimized
Reserve System
Additional safety margin
Instrument Panel
Custom avionics integration
Transport Trailer
Custom engineered
Technical Specifications
Model Comparison

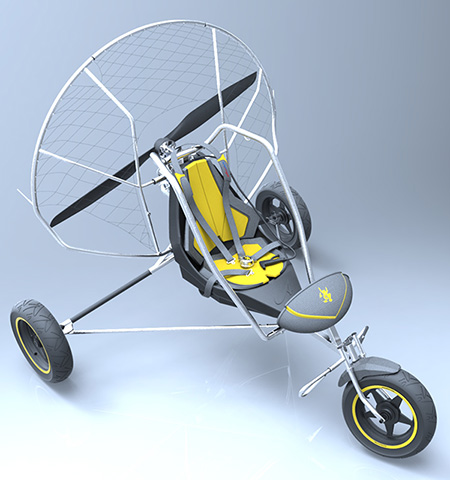

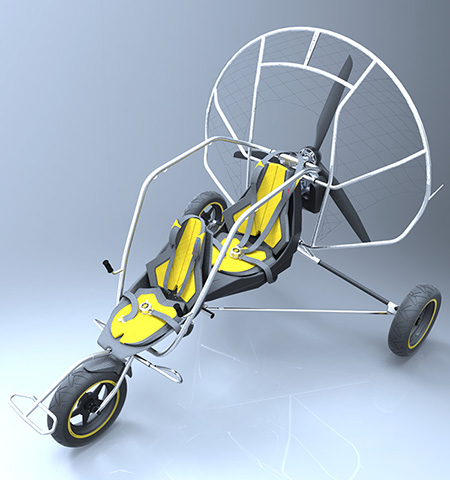

| Specification | Single-Pilot | Tandem |
|---|---|---|
| Track Width | 1.68m | 1.68m |
| Overall Height | 1.81m | 1.95m |
| Height (cage excluded) | 1.18m | 1.21m |
| Overall Length | 2.15m | 2.32m |
| Wheelbase | 2.15m | 2.11m |
| Cage Diameter | 1.55m | 1.84m |
| Weight (400mm wheels) | 60-68 kg | 82 kg |
| Weight (10" wheels) | 68-76 kg | 90 kg |
| Frame Construction | 304 stainless steel & titanium TIG welded | |
| Fuel Capacity | 23L | |
| Harness System | Sparco 4-point restraint | |
| Seat Cushion | 10cm cellular foam - removable/washable | |
| Specification | Single-Pilot | Tandem | ||
|---|---|---|---|---|
| Tiger | MOSTER | Mini 3 EVO | ||
| Engine Type | 2-stroke | |||
| Displacement | 160cc | 185cc | 270cc | |
| Power Output | 23 HP | 25 HP | 34 HP | |
| Fuel Mix | 2% | 2.5% | 2.5% | |
| Reduction Type | PJ Belt | Clutch | PK Belt | |
| Reduction Ratio | 1:2.85 | 1:2.87 | 1:3.25 | |
| Starter System | Electric FIEM | Dual (electric & manual) | Electric MITSUBA | |
| Battery | 14.8V Li-Po | 14.8V Li-Po | 12V LiFePo4 | |
| Propeller | 2-blade carbon 1.3m | 2-blade carbon 1.3m | 3-blade carbon 1.3m & 1.6m | |
| Static Thrust | 70kg | 85kg | 90kg & 125kg | |
| Endurance | 4+ hours | 4 hours | 3 hours | |
